Socket H 1U Heatsinks Socket H 1U Heatsinks

Socket H 1U Heatsinks

Introduction：
Skived Fin Heatsinks, PT5G01 CPU Skived Fin Heat sink, Platform: Socket H&H1&H2&H3

GET A QUOTE



Skived Heatsinks Introduction

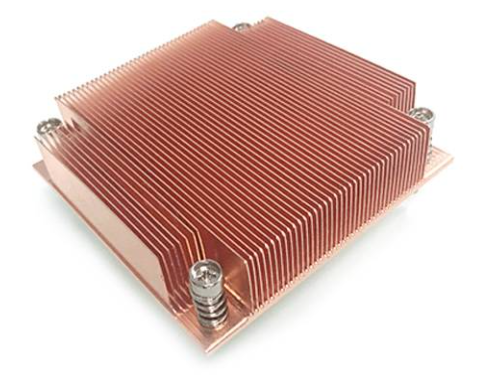

PT5G01 Socket H&H1&H2&H3 Skived Fin Heatsinks

This 1U passive heatsink is made by skiving process, purely copper. Screw and springs are assembled afterwards.





Socket H 1U Heatsinks



Available heat sink process of Pioneer Thermal:



Main Process Extrusion Bonded Fins Skived Fins Snapped Fins Folded Fins Heat Pipes
Cold Forging Die Casting FSW cold plate Gun drill cold plate Vacuum brazing cold plate Vapor chamber

Finishing Processes CNC machining Drilling Tapping Stamping Anodizing Screen printing
Powder coating Laser etching Polishing Electrophoresis E-coating

Finishing Value Added Embedded fans Thermal Greases Screws Springs Clips Embedded heat pipes
Phase change materials Back plates Gap filler pads PEMs Standoffs Dielectric pads
Compounds

Pioneer Thermal R&D:

Our seasoned professionals can model and critique the thermal implications of your design using Icepak, Flotherm, CFD, Solidworks, ProE, and AutoCAD.  We can manage your thermal needs from the conceptual design stage, through prototypes and into production, which enable us to be your “one-stop” shop for quality thermal solutions, delivered on time and at competitive prices.



Pioneer Thermal Quality Assurance:

Inspection tool of Pioneer Thermal:



Heat sink dimension
CMM Projector

Heat sink performance
Salt Spray Tester Pressure Tester Clip Force Tester Drop Tester Helium Leakage Tester

Heat sink reliability
Wind Tunnel On Line Thermal Tester HP Qmax Tester HP Delta T Tester Thermal Shock High Temperature Aging Chamber
