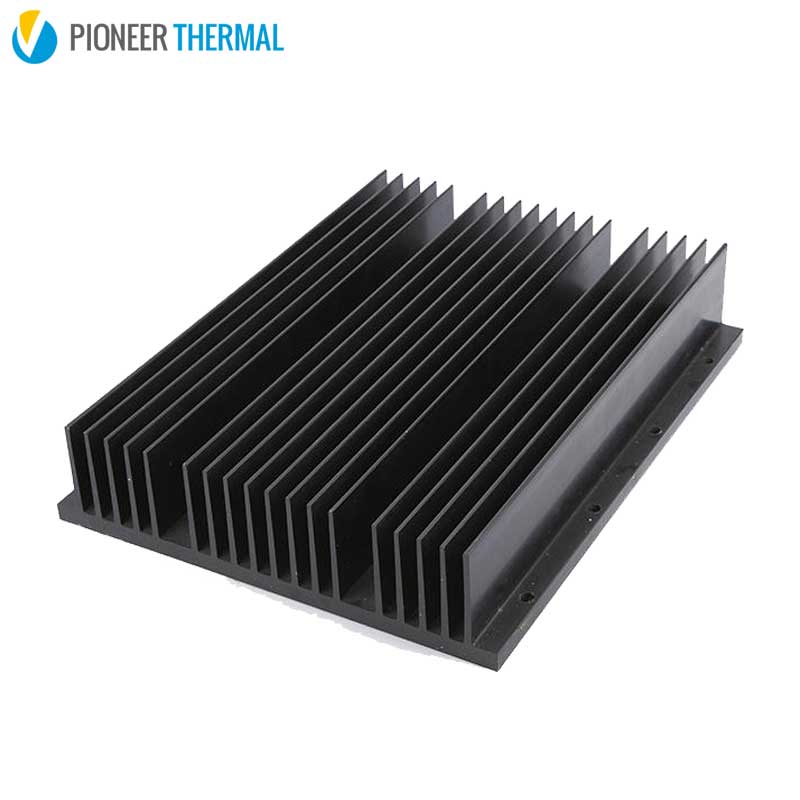

Black Anodized Extruded Heatsink

Introduction：
Model: Extruded heatsink with black anodized
Material: AL6063-T5
Process: Extrusion + CNC machining hole and threads
Flatness: +/-0.01mm
Finish: black anodized
Delivery time: samples 2 weeks, production 3-4 weeks.
Pioneer Thermal can provide different finishing for extruded heatsink, send inquiry now to get details.

GET A QUOTE

PRODUCTS

DETAILS

Product Introduction

Extruded Aluminium Heatsink is the one of most popular and cost efficient heat sink for customers ,and it's features as following.
1. Heatsink made of high quality Aluminum, good thermal conductivity
2. Maximize surface area designed in contact with the cooling air
3. Oxidation surface treatment
4. Used for IC, Diode, Dynatron, Electronic, Led, Ram, Chip computer 's component heat dissipation, or anywhere you need a efficient heat sink
Black Extruded heat sinks

Black heat sinks

Extruded Heatsink Design Parameters:

Machine tonnage	Diagonal Line limit	Fin Height/Fin Gap
600T	<120mm	24
880T	<130mm	24
1000T	<150mm	22
1500T	<180mm	22
1800T	<200mm	21
2500T	<230mm	21
2750T	<250mm	21
3000T	<320mm	20
3600T	<350mm	20
4000T	<400mm	20
6500T	<540mm	19
8000T	<700mm	16

Heat Sink Process:

Main Process

Extrusion

Bonded Fins

Cold Forging

Die Casting

Folded Fins

Heat Pipes

Skived Fins

Snapped Fins

FSW cold plate

Gun drill cold plate

Vacuum brazing cold plate

Vapor chamber

Finishing Processes

CNC machining

Drilling

Tapping

Stamping

Anodizing

Screen printing

Powder coating

Laser etching

Polishing

Finishing Value Added

Embedded fans

Thermal Greases

Screws

Springs

Clips

Embedded heat pipes

Phase change materials

Back plates

Gap filler pads

PEMs

Standoffs

Dielectric pads

Compounds

Pioneer Thermal R&D:

Our seasoned professionals can model and critique the thermal implications of your design using Icepak, Flotherm, CFD, Solidworks, ProE, and AutoCAD. We can manage your thermal needs from the conceptual design stage, through prototypes and into production, which enable us to be your “one-stop” shop for quality thermal solutions, delivered on time and at competitive prices

About Pioneer Thermal:

As a heat sink manufacturer in China, Pioneer Thermal is certified with ISO9001, ISO14001 and TS16949, and has a dedicated quality assurance department with full CMM capabilities. We are focused on providing advanced technology, superior customer service and outstanding value to our industry partners.

Pioneer Thermal has more than 18 years experience in CNC machining, cold forging heatsinks, cold plate heatsinks, die casting heatsinks, extrusion heatsinks, heatpipe assemblies, skived fin heatsinks, stacked fin heatsinks, folded fin heatsinks etc. If you need any heat sink service, please contact Pioneer Thermal.
