Cold Plate
New Energy Cold Plate New Energy Cold Plate

New Energy Liquid Cold Plate Heat Sink

Introduction：
The New energy radiator liquid cold plate cooling system uses a pump to circulate the coolant in the heat pipe and dissipate heat. The decalescence part on the radiator (called the decalescence box in the liquid cooling system) is used to absorb heat from the computer CPU, graphics card, lithium battery, 5G communication equipment, UPS and energy storage system, large photovoltaic inverter heat dissipation, SVG/SVC heat dissipation.

GET A QUOTE

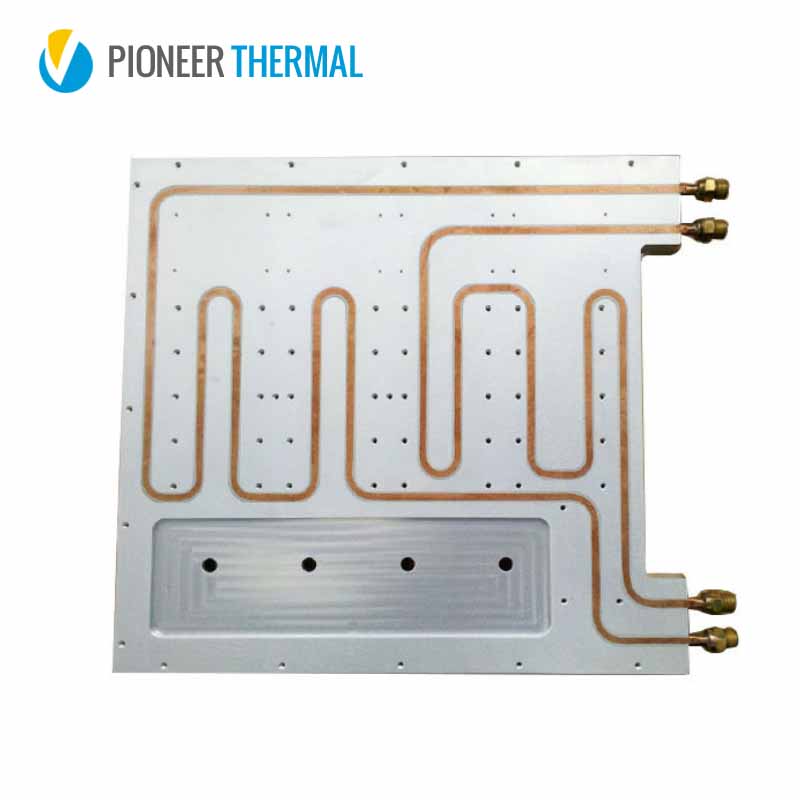

Copper Tube liquid cold plate radiator for new energy vehicles



Pioneer Thermal offers low to medium performance requirements in a cost effective solution. Design flexibility, customized tube shapes, and tube materials options (copper, aluminium and stainless steel) are the advantages of Pioneer Thermal cooling plates. Copper, aluminium or stainless steel tubes embedded in the surface of the aluminium plate provide the lowest thermal resistance between the semiconductor mounting surface and the cooling fluid. The tubes can be bent into complex arrays to ensure that the cooling surface is located directly under the semiconductor chip.

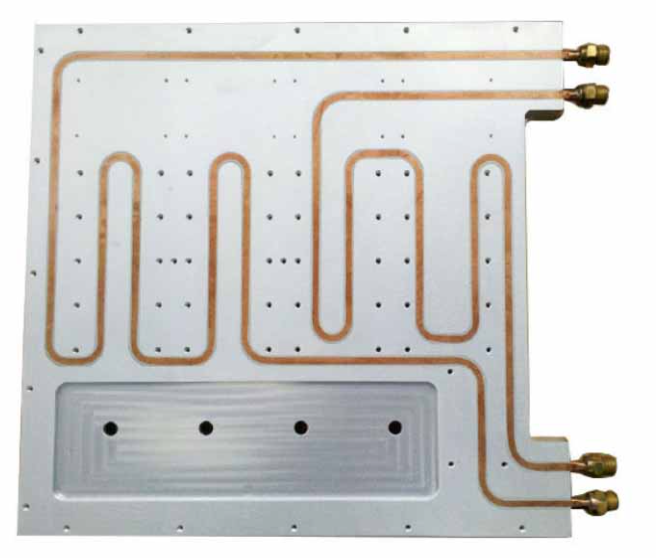

New Energy Liquid Cold Plate Heat Sink

Embedded Tube Liquid Cold Plate Process:

Embedded Tube Liquid Cold Plate Process

Hot Selling Liquid Cold Plate Heat Sinks



liquid cold plate heat sink

Available heat sink process of Pioneer Thermal:



Main Process Extrusion Bonded Fins Skived Fins Snapped Fins Folded Fins Heat Pipes
Cold Forging Die Casting FSW cold plate Gun drill cold plate Vacuum brazing cold plate Vapor chamber

Finishing Processes CNC machining Drilling Tapping Stamping Anodizing Screen printing
Powder coating Laser etching Polishing Electrophoresis E-coating

Finishing Value Added Embedded fans Thermal Greases Screws Springs Clips Embedded heat pipes
Phase change materials Back plates Gap filler pads PEMs Standoffs Dielectric pads
Compounds

Pioneer Thermal Quality Assurance:

Pioneer Thermal will do the quality control from incoming material to heat sink shipped, if customer find any defect parts when received the goods, we will send replacement or credit note.



Inspection tool of Pioneer Thermal:


Heat sink dimension
CMM Projector

Heat sink performance
Salt Spray Tester Pressure Tester Clip Force Tester Drop Tester Helium Leakage Tester

Heat sink reliability
Wind Tunnel On Line Thermal Tester HP Qmax Tester HP Delta T Tester Thermal Shock High Temperature Aging Chamber

Pioneer Thermal R&D:

Our seasoned professionals can model and critique the thermal implications of your design using Icepak, Flotherm, CFD, Solidworks, ProE, and AutoCAD.  We can manage your thermal needs from the conceptual design stage, through prototypes and into production, which enable us to be your “one-stop” shop for quality thermal solutions, delivered on time and at competitive prices.



About Pioneer Thermal:





As a heat sink manufacturer in China, Pioneer Thermal is certified with ISO9001, ISO14001 and TS16949 with 7500 square meter facility, and has a dedicated quality assurance department with full CMM capabilities. We are focused on providing advanced technology, superior customer service and outstanding value to our industry partners.

Pioneer Thermal has more than 18 years experience in heat sink design and manufacturing, our process includes CNC machining, cold forging heatsinks (also known as pin fin heat sink), cold plate heatsinks, die casting heatsinks, extrusion heatsinks, heatpipe assemblies, skived fin heatsinks, stacked fin heatsinks, folded fin heatsinks etc. If you need any heat sink service, please contact Pioneer Thermal.
