Product Introduction

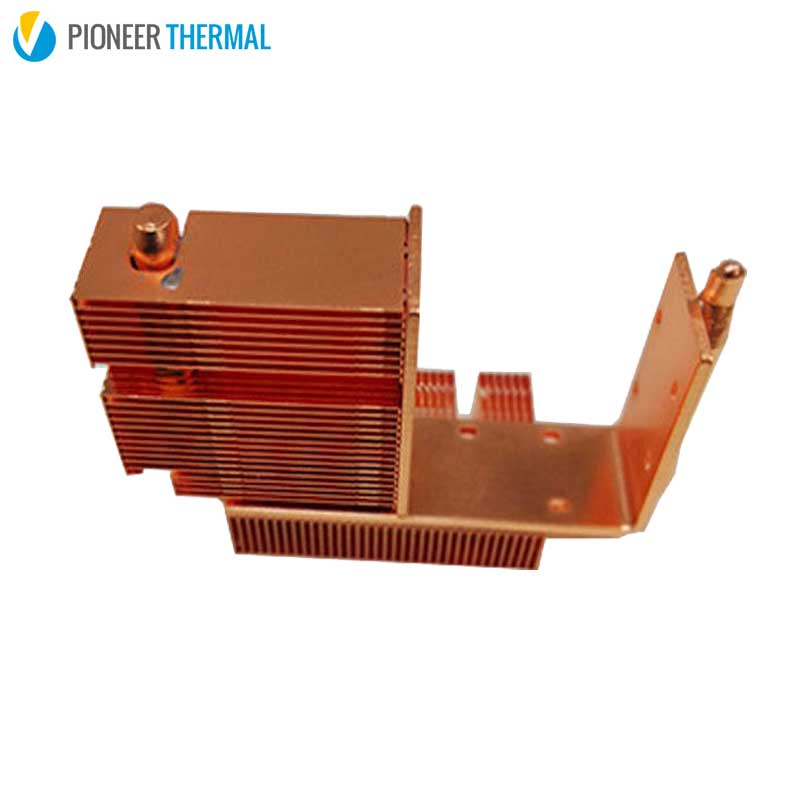

This Copper Pipe Heat Sink has the following details:
Copper fin thickness: 0.5mm
Copper pipe: 6mm diameter
Copper pipe quantity: 2pcs
Material:copper pipe + Copper fins + Copper block
Manufacturing Process
Copper Pipe Heat Sink has following processing technique:
Copper fin: Progressive die stamping process
Copper block: CNC machining process
Heat pipe forming: automatic pipe bending
Copper fin, copper block and copper heat pipe anti-oxidation (insulation, oxidation and corrosion resistance)
Assembly: copper fin, copper block and heat pipe assembled by soldering process through our reflow oven
Quality: 100% on-line thermal test
Parameters
| Place of Origin: | Dongguan, China (Mainland) | OEM: | Yes |
| Process: | Soldering | Temper: | T3-T8 |
| Material: | Copper pipe+ Copper fin+ Copper base plate | Shape: | Customize |
| Packing: | Carton with plywood pallet | Weight: | 125g |
| Application: | Led, Projector, power supply, PV inverter | Certificate: | ISO 9001:2015,ISO 14001:2015, TS16949 |
| Model Number: | PT028 | Tolerance: | 0.01 mm |
| Finish: | Passivation | Quality control: | 100% on-line thermal test |
| Extra process: | Stamping+CNC Machining | Size: | Custom size |
As a heat sink manufacturer in China, Pioneer Thermal is certified with ISO9001, ISO14001 and TS16949, and has more than 18 years experience in CNC machining, cold forging heatsinks, cold plate heatsinks, die casting heatsinks, extrusion heatsinks, heatpipe assemblies, skived fin heatsinks, stacked fin heatsinks, folded fin heatsinks etc., Pioneer Thermal has own R&D team who can design and run simulation for you if you require design service, or assist your design team to improve the part feasibility from the manufacture point of view (design refine/process optimize/cost reasonable). If you need any heat sink service, please contact Pioneer Thermal.
