Introduction：
Model: Skived fin Heat Sink
Material: AL1060
Finish: black anodized
Delivery time: sample 2 weeks, production 3-4 weeks
Pioneer Thermal Heatsink has own R & D team to design skived fin heat sinks and workshop to process customized skived heat sinks. Any skived heat sinks need, please contact Pioneer Thermal Heatsink.

GET A QUOTE

Product Introduction

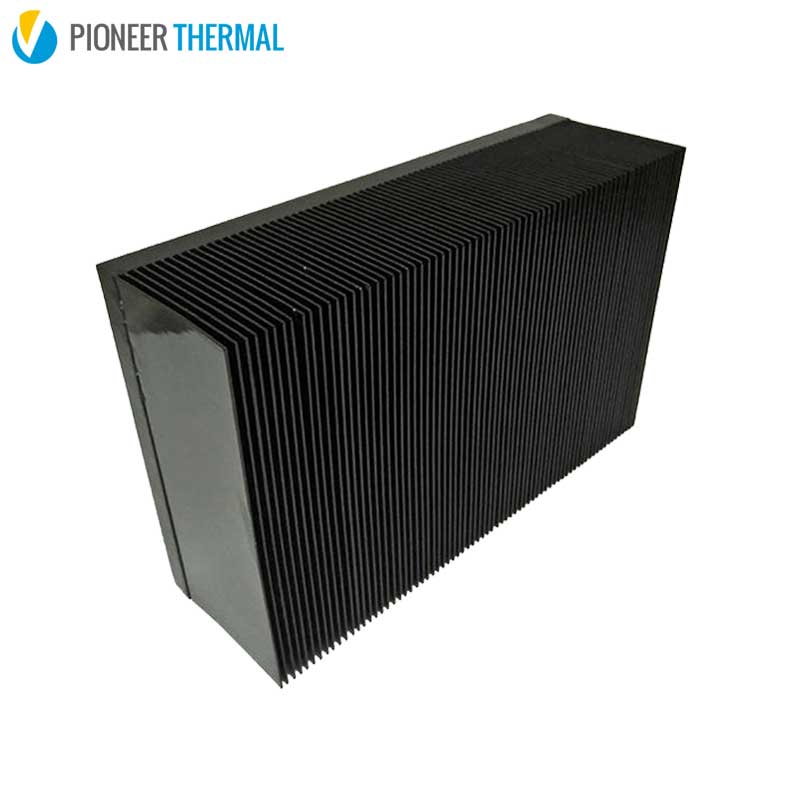

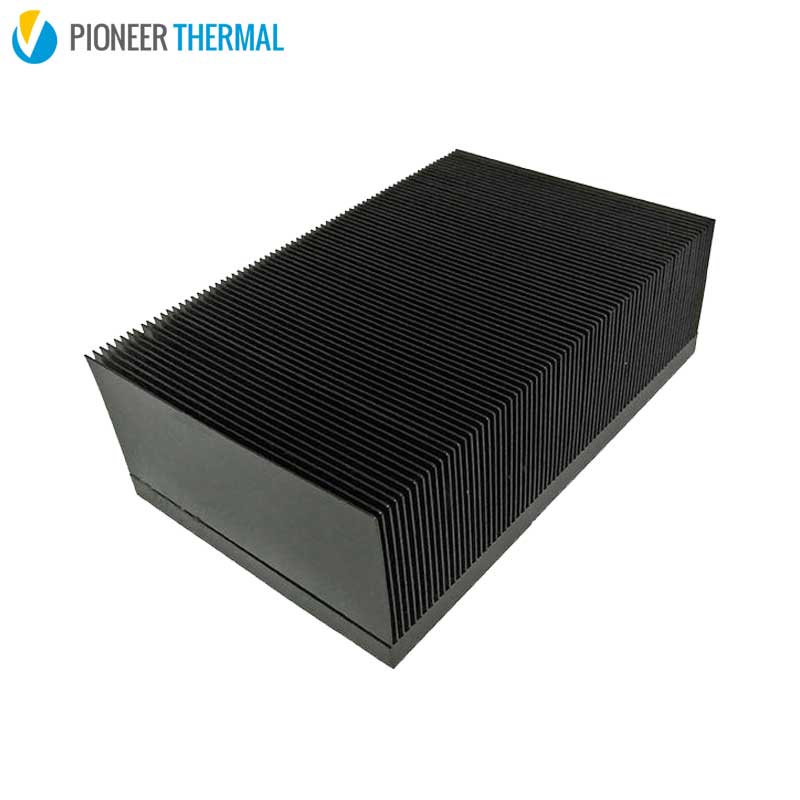

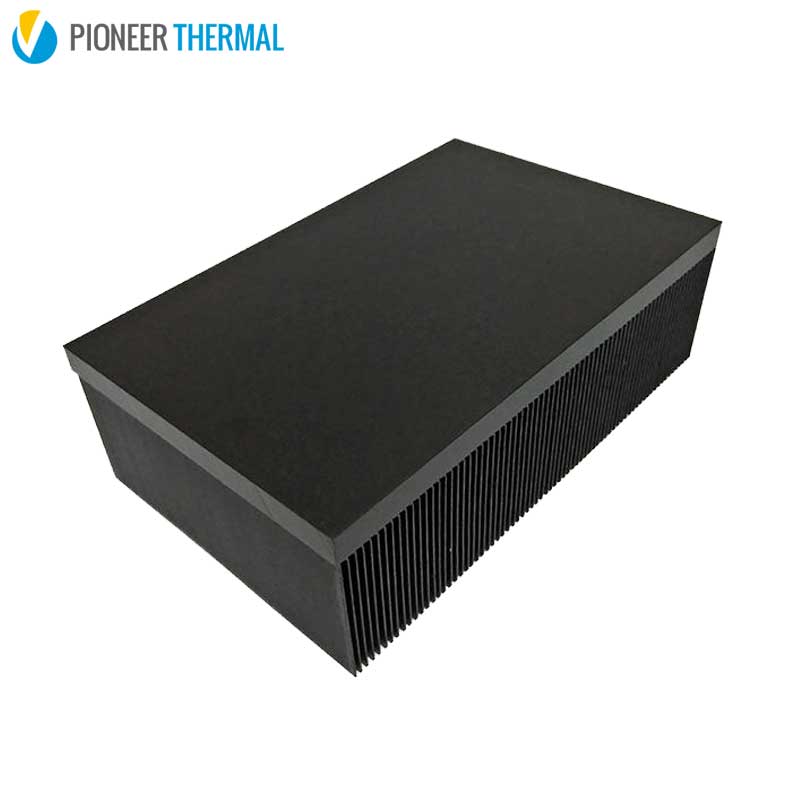

Skived Fin Heat Sink



This Skived Fin heat sink has some advantages as following.

1.Enables Solid Metal Solutions
2.Save cost on tooling, skived fin heat sink do not need tooling.
3.Alternative to extruded heat sink, when need the high density heat sink which can not get by the extrusion technology.
4.Improved Thermal Performance, the skived fin heat sink made of pure aluminum and the fin and base are one piece.

Technical Parameters







Place of Origin: Dongguan, China (Mainland) OEM: Yes
Process: Skived fin Temper: T3-T8
Material: AL6063 Shape: Square
Packing: Paper carton with plywood pallet Brand Name: PIONEER THERMAL (PT)
Application: High power devices Certificate: ISO 9001:2015,ISO 14001:2015, TS16949
Model Number: PT021 Tolerance: 0.05 mm
Finish: Black Anodized Fin thickness: 0.25 --2 mm
Extra process: CNC Machining Size: 350*180*40 mm
Applied Field: Telecommunication, UPS, inverters, controllers, wind power converters, and SVG

AL1060 / AL 6063/ CU1100 Process parameter:
Base thickness: 1~30 mm    Fin length: <550 mm Fin height: <120 mm
Fin thickness: 0.25~2.0 mm    Fin gap: 0.2~6.5 mm    Product length: 3000 mm

Our Customers





Most of PT heatsink products are customized and widely applied in IPC,server,telecom & communications infrastructure &power,LED lighting,medical equipment and other products.
