How To Custom Heatsink-Heat Sink Design

There are many types of heat sinks, and there are different types of heat sinks in different fields. According to personal experience, the custom heatsinks are as following.

Traditional interior heat sink: Mainly used in interior heating and heat preservation operations, common in colder places in the north.

Computer graphics card heat sink: mainly used in the middle and high-end computer market to help the computer graphics card to dissipate heat and cool down.
Notebook computer heat sink: Mainly used in the NB market. Commonly used are external radiator base type and internal CPU and GPU heat sink, which also help the computer to dissipate heat and cool down. The difference is that this radiator is smaller.

Server heat sink: With the continuous demand of the cloud and AI market in recent years, the server market has performed well. Unlike conventional heatsinks, this type of heat sink does not have a fan, and mainly depends on the passive cooling of the system fan.

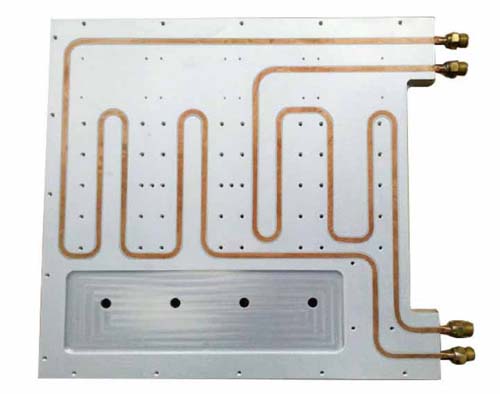

Liquid-cooled heat sink: This type of heat sink is the future development trend of conventional air-cooled heatsinks. As the market chip power continues to increase (operating calculation speed), the chip temperature is also getting higher and higher, and traditional air cooling can no longer meet the high power requirements. In order to meet the chip requirements, liquid-cooled heat sinks must be used. Liquid-cooled heatsinks generally separate internal heat dissipation and open-type heat dissipation.
Pioneer Thermal is a China leading custom heatsink solution manufacturer since 2003,if you need custom heatsink, please contact us.Our R&D team will supply the best heat sink for you.
