Water Cooling Heat Sink Solution

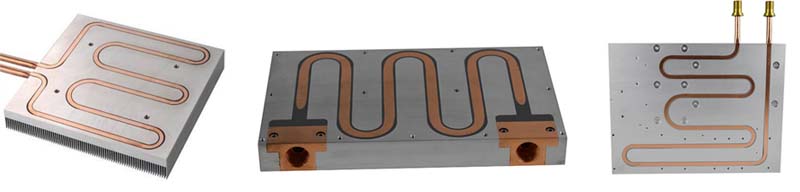

The water cooling heat sink made using buried welding technology can effectively avoid the leakage risk of the infusion pipeline, and the liquid flow is large, the conduction heat resistance is low, and the double-sided device can be installed. Pioneer Thermal Heat Sink manufacturer, we are providing you with the thermal design, structural design, pipework assembly design of liquid and water cold plate and one-stop supplementary services.

water cooling heat sink

A typical water cooling system must have the following components: water cooling block, circulating fluid, water pump, piping and water tank or heat exchanger. A water block is a metal block with water channels inside, made of copper or aluminum, that is in contact with the CPU and will absorb heat from the CPU. The circulating liquid flows in the circulating pipeline by the action of the pump. If the liquid is water, it is what we commonly call the water cooling system. The liquid that has absorbed the CPU heat will flow away from the water block on the CPU, and the new low temperature circulating fluid will continue to absorb the CPU heat. The water pipe connects the water pump, the water cooling block and the water tank, and its function is to allow the circulating fluid to circulate in a closed channel without leakage, so that the liquid cooling system can work normally. The water tank is used to store the circulating fluid, and the heat exchanger is a device similar to a heat sink. The circulating fluid transfers heat to the heat sink with a large surface area, and the fan on the heat sink removes the heat from the incoming air.
As a mature cooling technology, water cooling heat sink has been widely used in industrial ways, such as automobile and aircraft engine cooling. In fact, the application of liquid cooling technology in the computer field is not because air-cooling cooling has been developed to the end, but because the heat sink speed of liquid is far greater than that of air, so the water cooling heat sink often has a good cooling effect, at the same time in the noise can be well controlled. Due to various advantages in heat dissipation efficiency and mute, water cooling heat sink also appeared after the popularity of computer air-cooled heat sink. Fortunately, up to now, water cooling in the field of computer is gaining popularity, which is attributed to the safety and stability of liquid cooling has made great progress.
The cooling system utilizes a pump to circulate the coolant in the heat pipes and dissipate heat. The heat-absorbing part on the radiator (called the heat-absorbing box in the liquid cooling system) is used to absorb heat from the computer CPU, north bridge, and graphics card. The heat absorbed by the heat-absorbing part is discharged to the outside of the host through the heat sink designed on the back of the fuselage.
